K18500 High Temperature Wheel Bearing Grease Tester







Test Method
Evaluates the high temperature stability of automotive wheel bearing greases in a modified automotive front wheel hub-spindle-bearings assembly. The ASTM D3527 Life Performance test employs severe conditions (25 lbf (111N) thrust load, 1000rpm, 160C spindle temperature) to induce grease deterioration and failure. The test continues in a 20/4 hour on/off cycle until grease breakdown causes measured drive motor torque to increase past an established end point. The number of hours to failure is the test result. The ASTM D4290 Accelerated Leakage Tendencies procedure employs similar test conditions for a 20 hour period, after which leakage of grease and oil is measured and the bearings are washed and examined for deposits of gum and varnish.

Features and Benefits
• Conforms to ASTM D3527, D4290 and D4950 specifications

• Fully automatic operation

• Digital monitoring of all test functions

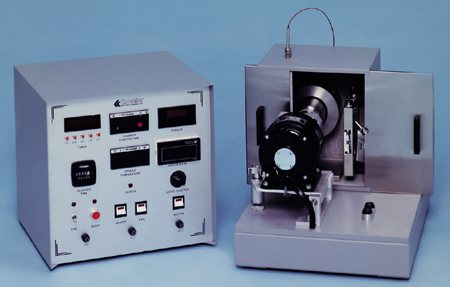

K18500 High Temperature Wheel Bearing Grease Tester
Performs life performance and accelerated leakage tendencies tests on lubricating greases in accordance with ASTM test specifications. Consists of a modified front wheel hub-spindle-bearings assembly housed in a constant temperature oven and coupled to a 1/4hp variable-speed drive motor. Controls test functions automatically and provides continuous digital display of motor torque, rpm, chamber temperature, spindle temperature, time cycle and elapsed time. Test parameters outside of ASTM specifications can be selected by the operator for in-house testing. Automatically terminates test and displays elapsed on-cycle hours when grease deterioration causes drive motor torque to increase to the calibrated end point. A built-in thirty second time delay circuit prevents erroneous test terminations due to momentary surges in motor torque at the beginning of the on-cycle. Insulated constant temperature oven is equipped with a 1200W heater and balanced 1/20 hp circulation fan for efficient heat distribution. Sliding access doors and a movable platform that swings the drive motor out of the way provide easy access to the spindle assembly. Modified steel spindle and hub assembly conforms to all critical 1971 Chevy II dimensions and is fitted with thermocouple, bearing thrust loading device and anodized aluminum grease collector. All controls and monitors are housed in a separate cabinet.

Specifications
Conforms to: ASTM D3527, D4290, D4950

Digital controls and displays:
Timer: on/off cycle and real time
Chamber Temperature: C
Spindle Temperature: C
Motor rpm: 0-1725rpm
Motor Torque: current draw
Elapsed Time: 9999.9 hr.
Maximum Temperature: 177C (350F)

Electrical Requirements
115V 60Hz, Single Phase, 13A
220-240V 50Hz, Single Phase, 7A
220-240V 60Hz, Single Phase, 7A

Included Accessories
Thermocouples (2)
Thermometer holder
Bearings (1 set)
Grease Packer Assembly
Bearing Installation/Removal Tools:
bearing installer, small and large bearing cup removers, bearing cup installer, bearing puller and spindle wrenches (pins)

Dimensions lxwxh,in.(cm)
Test Unit: 16x20x15.75 (41x51x40)
Control Unit: 16x14x16 (41x36x41)
Net Weight: 145 lbs (65.8kg)

Shipping Information
Shipping Weight: 230 Ibs (104.3kg)
Dimensions: 14.8 Cu. ft.


Ordering Information



Catalog
Number

Product Description

Electrical Requirements

K18500

High Temperature Wheel Bearing Grease Tester

115V / 60Hz

K18595

High Temperature Wheel Bearing Grease Tester

220-240V / 50Hz

K18590

High Temperature Wheel Bearing Grease Tester

220-240V / 60Hz


Accessories



Catalog
Number

Product Description

250-000-42C

ASTM 42C Thermometer
Range: 95 to 255C

289-004-001

Inboard Bearing Set
Includes LM67048 Cone and LM67010 Cup

289-004-002

Outboard Bearing Set
Includes LM11949 Cone and LM11910 Cup



When inquiring about NIST traceable certified thermometers, please refer to the catalog number for the corresponding thermometer and replace the middle three zeros in the catalog number with 004. Example: 251-000-01C ASTM 1C Thermometer would be 251-004-01C ASTM 1C Certified Thermometer.
