K19500 Penetrometer




Test Method
Penetration tests are performed on petroleum products to determine consistency and shear stability (lubricating greases) for design, quality control and identification purposes. A standard cone or needle is released from a penetrometer and allowed to drop freely into the sample for 5 seconds (or a different specified interval) at constant temperature. The depth of penetration of the cone or needle into the sample is measured in tenths of a millimeter by the penetrometer.

Features and Benefits
• Conforms to ASTM and related specifications for penetrometers

• Suitable for laboratory or field use

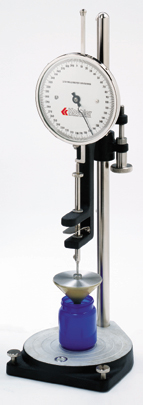

K19500 Penetrometer
Designed for ASTM penetration tests on petroleum products and for consistency tests on a wide range of food products, cosmetics, pastes and other solid to semisolid products. Precision machined and assembled to exacting specifications, and ruggedly constructed to insure long service life in both laboratory and field applications. Features a full penetration range of 0-62.0mm with 1/10mm subdivisions (0-620 penetration scale). Accommodates cones and needles to perform all of the ASTM tests on lubricating greases, asphalts, petroleum waxes and petrolatums. Compact design facilitates transport for field use. Head assembly adjusts for accurate placement of the tip of the needle or cone on the surface of the sample. Sturdy cast iron base provides excellent support and has a built-in spirit level and levelling screws to insure proper alignment of the penetrometer during testing. Supplied with 50 and 100 gram weights and standard 47.5g plunger assembly. Order test cones, needles and lightweight plunger (where applicable) separately.

Conforms to:
ASTM D5, D217, D937, D1321, D1403, D2884, D4950; IP 49, 50, 179, 310; ISO 2137; DIN 51804, 51580, 51579; FTM 791-311, 791-312, 791-313; AOCS Cc 16-60; AACC 58-14

Included Accessories
Plunger, 47.5g
Weights, 50 and 100g

Dimensions lxwxh,in.(cm)
6x6x18 (15x15x46)
Net Weight: 12 lbs (5.4kg)

Shipping Information
Shipping Weight: 15 lbs (6.8kg)
Dimensions: 1.7 Cu. ft.


Ordering Information



Catalog
Number

Product Description

K19500

Penetrometer


Accessories



Catalog
Number

Product Description

K19520

Plunger, 15g
For use with K20200, K19800, and K20300 Cones

K20910

Plunger, 6.9g
For use with K20900 Cone

K19525

Plunger, 47.5g

K19510

Auxiliary Weight Set
Includes one each 2.5g, 5g and 10g weights and two 20g weights

K19535

Loading Weight, 50g

K19536

Loading Weight, 100g
