K47000 Autoignition Apparatus







Test Method
Determines the lowest temperature at which the vapors of a liquid or solid chemical sample will self-ignite under prescribed laboratory conditions. The temperatures at which ‘cool flame’ and ‘hot flame’ ignitions occur, as evidenced by sudden temperature increases in the sample flask, are measured and recorded, and the delay time between introduction of the sample and ignition is timed.

Features and Benefits
• Conforms to ASTM E659 specifications

• Digital furnace temperature control

• Digital flask temperature display

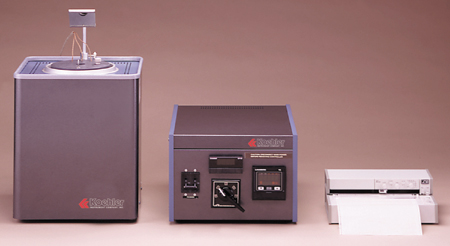

K47000 Autoignition Apparatus
Modified crucible furnace with digital thermocouple readout of flask temperature at prescribed points per ASTM specifications. Linearized analog output permits connection to a strip chart recorder or datalogging instrument. Furnace provides rapid response and 1C stability throughout the operating range of 200 to 1200C. Cylindrical heating chamber provides excellent radial temperature uniformity. Furnace cover has ports for flask exterior thermocouples, and a borosilicate glass thermocouple tube is provided to assure correct positioning of the gas temperature thermocouple inside the test flask. Thermocouples plug directly into the furnace control unit for quick disconnection when removing the flask. A hinged holder in the cover facilitates handling of the test flask. Adjustable mirror permits safe viewing of the flask interior during testing. Control panel has temperature controls and digital thermocouple readout with four-position selector switch.

Specifications
Conforms to: ASTM E659

Temperature Range: 200 to 1200C

Temperature Control: digital setpoint solid state controller accurate to within 1C

Flask Temperature Display: 0-1200C, with four position selector switch

Electrical Requirements
220-240V 50/60Hz, Single Phase, 7.7A

Included Accessories
Test Flask, 500mL
Thermocouples (4)

Dimensions lxwxh,in.(cm)
Furnace: 15x15x22 (38x38x56)
Control Cabinet: 22x10x14 (56x25x36)
Net Weight: 72 lbs (32.8kg)

Shipping Information
Shipping Weight: 98 lbs (44.5kg)
Dimensions: 16.3 Cu. ft.


Ordering Information



Catalog
Number

Product Description

Electrical Requirements

K47000

Autoignition Apparatus

220-240V, 50/60Hz


Accessories



Catalog
Number

Product Description

Electrical Requirements

362-001-000

Syringe, 1mL



K470-0-1-14

Needle, 6", stainless steel



308-115-001

Recorder
Records signal from the internal gas thermocouple in strip chart form.

115V 50/60Hz

308-230-004

Recorder

220-240V 50/60Hz

374-115-001

Hot Air Gun
For purging product gases between tests

115V 50/60Hz

374-230-001

Hot Air Gun

220-240V 50/60Hz

332-003-007

Test Flask, 500mL
