K88500 Air Release Value Apparatus







Test Method
The ability of a turbine, hydraulic, or lubricating oil to separate entrained air is a key performance characteristic in applications where agitation causes a dispersion of air bubbles in the oil. To determine air release properties, the sample is heated to a specified test temperature and blown with compressed air. After the air flow is stopped, the time required for the air entrained in the oil to reduce in volume to 0.2% is the air bubble separation time.

Features and Benefits
• Conforms to ASTM D3427, IP 313 and related specifications

• Optional data acquisition software package automates sample density measurements and provides additional tools for the calculation of the air release value, the first order rate of air release, and the volume percent air versus time

• High accuracy temperature control with digital setpoint and display

• Digital control panel leads user from start to finish of test operation

• Automatic calculation of final sample density for determination of air release value

• Redundant overtemperature protection circuitry assures safe operation




K88500 Air Release Value Apparatus

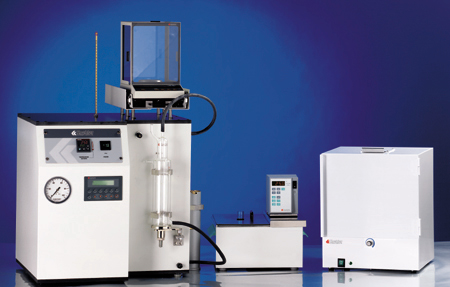

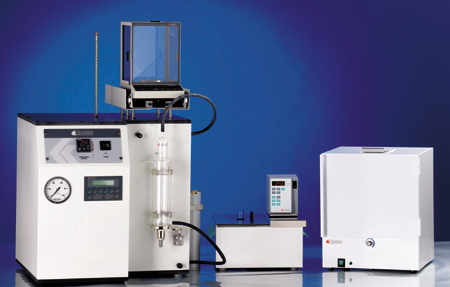

The Koehler Air Release Value Apparatus consists of a test vessel and air flow control equipment for delivering heated air at the specified flow rate to a lubricating oil sample maintained at constant temperature. Microprocessor-based control panel guides user from start to finish of test operation and provides density calculation and timing operation for measuring the air release value of the test sample. The system includes drying oven for warming test oil at temperatures of up to 100°C; circulating bath with digital temperature controller and air bath for sinker; non-pulsating air pump; compressed air heater with digital temperature controller, overtemperature and overpressure protection circuitry; pressure gauge; thermometer. Optional Windows® software automatically measures the time for air release and calculates the first order rate constant for air release and the volume percent of air versus time. Jacketed sample tube with air inlet and outlet tubes and baffle plate is ordered separately.

Specifications
Conforms to the specifications of: ASTM D3427; IP 313; DIN 51381; NF E 48-614

Temperature Range: ambient to 75°C (167°F)

Included Accessories
Jacketed Test Vessel
ASTM 12C Thermometer
5mL Sinker
10mL Sinker
Drying oven
Pressure gauge
Circulating Bath
Air Bath for Sinker
Balance
Platinum Wire

Electrical Requirements
115V 60Hz, 3.0A
230V 50Hz, 1.5A
230V 60Hz, 1.5A

Dimensions lxwxh,in.(cm)
24x28x38.25 (61x71x97)
(Air Release Value Apparatus only)
Net Weight for complete system: 225 lbs (103kg)

Shipping Information
Shipping Weight for complete system: 400 lbs (182kg)


Ordering Information



Catalog
Number

Product Description

Electrical Requirements

K88500

Air Release Value Apparatus

115V 60Hz, 3.0A

K88501

Air Release Value Apparatus

230V 50Hz, 1.5A

K88502

Air Release Value Apparatus

230V 60Hz, 1.5A


Accessories



Catalog
Number

Product Description

K88520

Data Acquistion Software Package

K88500-1

Jacketed Test Vessel
