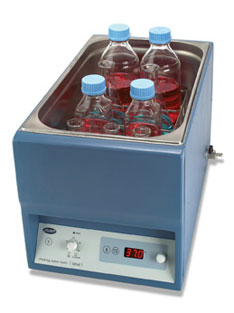

Shaking Water Bath TSBS 40



Specification
Nominal Capacity                24L
Temperature range           +5C to 100C
Temperature stability          0.25C
Shaking speed                  20 - 200rpm
Shaking orbit/amplitude      20mm
Internal dimensions 300 x 500 x 200mm

(w x d x h)

Overall dimensions 335 x 320 x 540mm

(w x d x h)
Net weight                         17kg
Electrical supply                120V, 60Hz, 1400W





Choice of orbital or linear shaking action
Variable speed control
Digital display and selection of temperature
Large 24L capacity

The TSBS40 water bath features an integral shaker drive built under its stainless steel tank. This shaker drive magnetically couples to shaking platforms TSBS40/1 (linear motion) or TSBS40/2 (orbital motion).

The platform requires no special fitting and is simply lowered into the tank ready to commence operation. Each stainless steel platform is fitted with 15 high tension springs, to hold almost any size and combination of flasks, beakers and bottles.

Shaking speed is adjustable and electronic feed-back control ensures accurately maintained speed. The water bath temperature is easily set and monitored via the LCD display. In addition, the design incorporates an over temperature protection system that tracks the set temperature and controls the heater in the event of a fault.The well laid out control panel is end on to save bench space.

A range of stainless steel accessories is available designed to accommodate popular tube types ranging from 1.5ml micro tubes up to 50ml centrifuge tubes. A choice of cover is also available, designed to reduce heat loss and evaporation in either stainless steel or plastic. The polycarbonate cover allows the cover to be hinged either side of the bath depending on working conditions and preference.





Cat. No.

Description

TSBS40

Water bath with shaker drive, without platform

TSBS40/1

Platform (linear shaking movement)

TSBS40/2

SBS32 Platform (orbital shaking movement)

TSBS 40/3

Platform, perforated

TSBS 40/4

Polycarbonate cover, hinged

TSWB 3/1

Bath cover, stainless steel (with handle)

SBS30/1

Spare springs (pack of 10)

TSBS 40/5

Test tube rack, 143 x 1.5ml micro tubes

TSBS 40/6

Test tube rack, 120 x 13mm culture tubes

TSBS 40/7

Test tube rack, 72 x 16mm culture tubes

TSBS 40/8

Test tube rack, 56 x 15ml centrifuge tubes

TSBS 40/9

Test tube rack, 30 x 26mm culture tubes

TSBS 40/10

Test tube rack, 25 x 50ml centrifuge tubes
